3 Way Ball Valve / Three Way Ball Valve (Multiport Ball Valve)

Full Bore / Regular (Reduce) Bore 3 Way Ball Valve Manufacturers
Flanged / Screwed / Socket / Butt Weld End Connection 3 Way Ball Valve Manufacturer
Manual Lever / Gear / Pneumatic Operated 3 Way Ball Valve Manufacturers

Three Way Ball Valve come with either L Port or T Port for suitable service condition. Mixing and Diverting Type Three Way Ball Valves are also available. Four Way Ball Valve available with Double L Port. The Three Way & Four Way Ball Valve features four seats for equal seat loading. Multiple Gland Packing Seal & Spring Washer gives zero leakage from gland portion.

Our 3 Way Ball Valves are ideal suitable for all industrial applications. Dharmi 3 Way Ball Valve application covers for Lube Oil Cooler 3 Way Ball Valve,. Lube Oil Filter 3 Way Ball Valve, Duplex Heat Exchager 3 Way Ball Valve, Duplex Type Basket Strainer, 3 Way Ball Valve, Mixing and Diverting Type 3 Way Ball Valve,, Multiport 3 Way  Ball Valve, Pump By-Pass Line 3 Way Ball Valve, Diverter 3 Way Ball Valve. Extened Stem 3 Way Ball Valve and Jacketed 3 Way Ball Valve can also available on speical request.

Dharmi Three Way Ball Valves are satisfactory perfrom in Power Plant Lube Oil Cooler (Heat Exchanger) and Lube Oil Filter Application. This application both valves are always operated by single hand lever of Gear Operated. We have supply  02 Nos. 3 Way Ball Valve operated by single gear mechanism and between both valve have distance 4.0 meter. Our manufacturing range of 3 Way Ball Valve is size from 1/2" to 12", Pressure Rating - 150# / 300#. All Types 3 Way T Port Ball Valve and 3 Way L Port Ball valve can supply with Electrical Single Phase / Three Phase Actuator or Pneumatic Qurater turn rotary actuator operated. We offer single acting spring return or double acting actuator as per client requirements. Dharmi all 3 Way  Ball Valves are supplieed with PTFE "V" Ring packing for Gland for long life zero leakages from gland area. For High Pressure applicationg and Gas application we also do provide Fire Safe type seating desing for bette performance of 3 way ball valve.



    3 Way Ball Valve - L Port

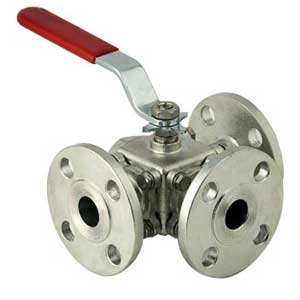

Hand Lever Operated
3 Way Ball Valve
3 Way Ball Valve L Port Flanged End Hand Lever Operated Drawing Catalgoue Download
GEAR Operated
3 Way Ball Valve
3 Way Ball Valve L Port Flanged End Gear Operated Drawing Catalgoue Download
PNEUMATIC Operated
3 Way Ball Valve
3 Way Ball Valve L Port Flanged End Pneumatic Actuator Remote Operated Drawing Catalgoue Download

    3 Way Ball Valve - T Port

Hand Lever Operated
3 Way Ball Valve
Three Way Ball Valve T Port Flanged End Hand Lever Operated Drawing Catalgoue Download
PNEUMATIC Operated
3 Way Ball Valve
Three Way Ball Valve T Port Flanged End Gear Operated Drawing Catalgoue Download



3-Way-Pneumatic-Actuator-Operated-Ball-Valve-Manufacturer-Manufacturers Three-Way-Ball-Valve-Manufacturer-Manufacturers-India-Extended-Stem-Valve

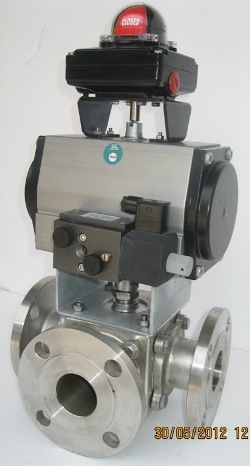

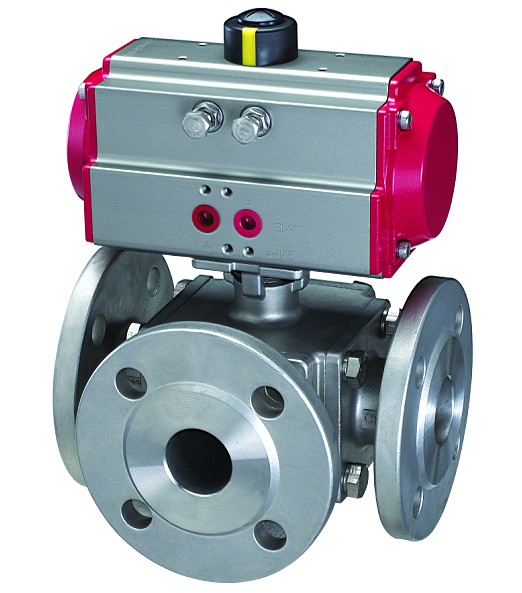

3 Way Pneumatic Operated Valve (Series F308P/408P)



3 Way Ball Valve Gear Operated - Series F508G/608G



SS304-316-3-Way-Flanged-End-Ball-Valve-Manufacturer-Exporters-India

3-Way-Ball-Valve-Screwed-Threaded-End-Manufacturer-Manufacturers-India

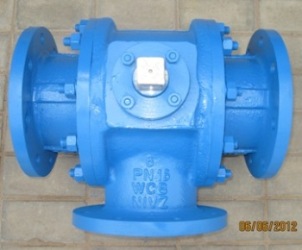

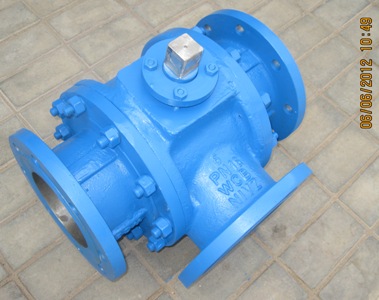

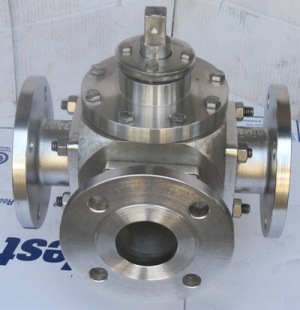

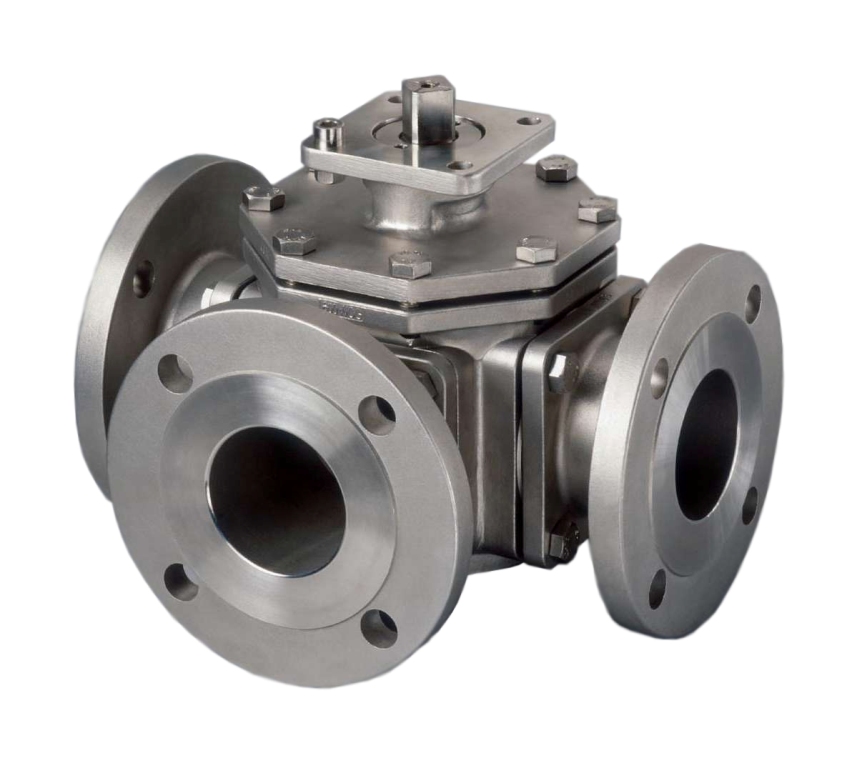

Three Way Ball Valve (Flanged END) - Series F308/408

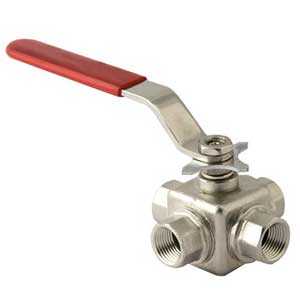

Three Way Ball Valve (Screwed END) - Series S108/208



Lube-Oil-Cooler-3-Way-Valve-Manufacturer Lube-Oil-Cooler-3-Way-Valve-Manufacturers

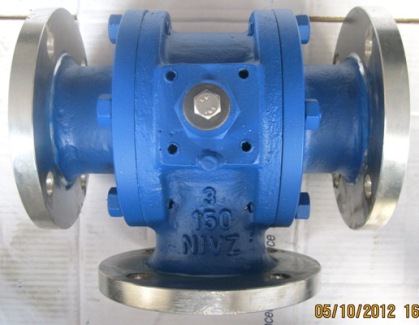

Three Way Ball Valve for Lube Oil Cooler/Heat Exchanger -  Series F508/608

Three Way Ball Valve for Lube Oil Filter -  Series F508/608

Three-Way-Ball-Valve-Gear-Operated-Manufacturers-Exporters-India

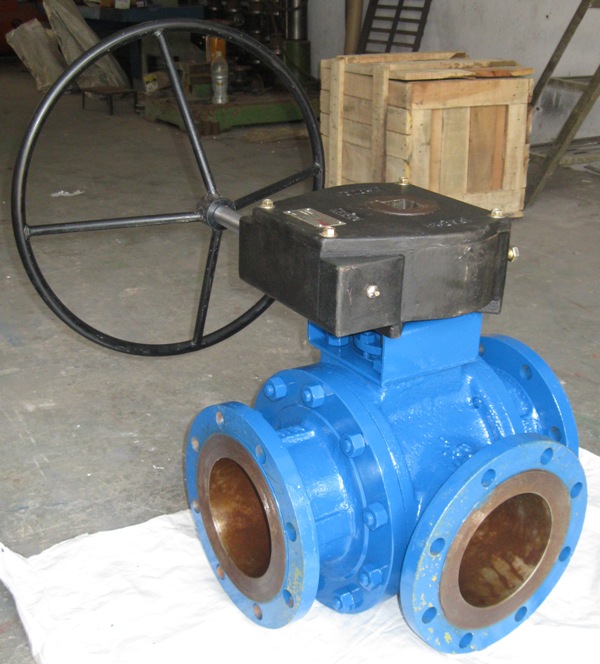

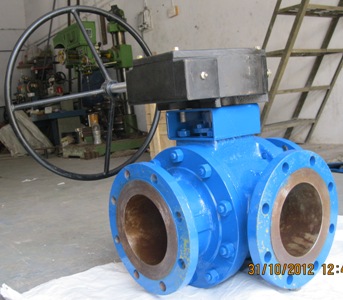

3 Way Ball Valve Gear Operated - Application: Lube Oil Cooler & Filter in Thermal Power Plant

3-Way-Ball-Valve-Manufacturer-Manufacturers-Exporters-India

Three-Way-Ball-Valve-Manufacturer-Manufacturers-Exporters-India

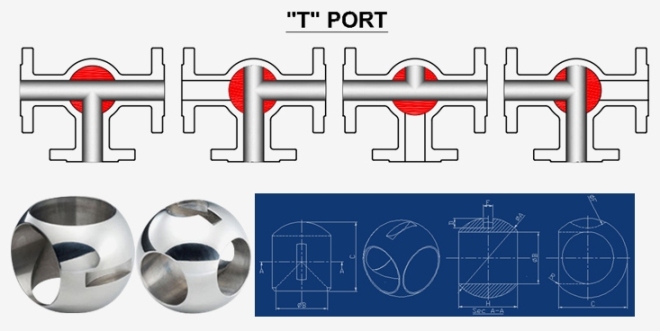

Different Position of Three Way T Port Ball Valve

Three-Way-T-Port-Ball-Valve-Manufacturers-Exporters-India

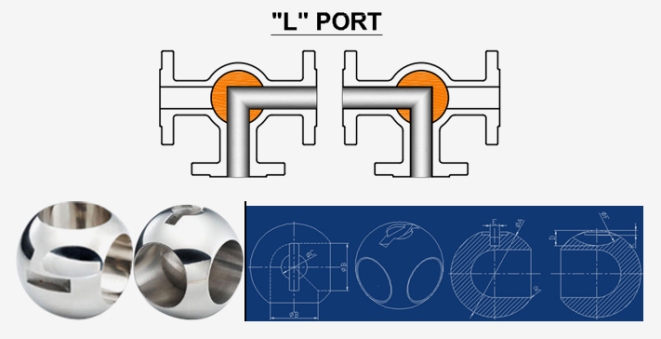

Different Position of Three Way L Port Ball Valve

Three-Way-L-Port-Ball-Valve-Manufacturers-Exporters-India

Dharmi Engineers Covers Size range for Multiport Ball Valve in Screwed / Socket / Butt Weld End from to 2 and in Flanged End from to 6, Pressure Rating up to 300#

Dharmi Engineers P.T.F.E. seated Ball Valves gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -200 C. to +2200 C. Electro-Polished, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on request.

Each Duplex Type Fitler & Duplex Heat Exchanger have must required a 3 Way Ball Valve to changeover the filter.



Three-Way-Ball-Valve-Flanged-End-Dimensions-Drawing-Diagram

3 Way Ball Valve Dimensions - Three Way L Port, Full Bore, Ball Valve Dimensions
Pressure Rating - Class 150 / PN6 / PN10 / PN16 / PN 25 (Model - Series F508)
Flange Drilling & Dimensions - As Per ANSI B 16.5, Class 150 (Other Standrad Drilling Available on Request)
Size (INCH) 1" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8" 10" 12"
Size (DN) 25 40 50 65 80 100 125 150 200 250 300
F to F 165 215 245 263 284 336 400 450 600 730 880
Flange O.D. 108 127 152.4 177.8 190.5 228.6 254 279 343 406 483
Flange PCD 79.3 98.4 120.6 139.7 152.4 190.5 215.9 241.3 298.4 362 431.8
R.F. Dia. 50.8 73 92.1 104.7 127 157.2 185.6 215.9 269.9 323.8 381
No. of Hole 04 04 04 04 04 08 08 08 08 12 12
Hole Dia. 15.8 15.8 15.8 19 19 19 19 22.2 22.2 25.4 25.4
Pressure Rating - Class 300 / PN40 / PN64 (Model - Series F608)
Flange Drilling & Dimensions - As Per ANSI B 16.5, Class 300 (Other Standrad Drilling Available on Request)
Size (INCH) 1" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8" 10" 12"
Size (DN) 25 40 50 65 80 100 125 150 200 250 300
F to F 178 220 260 270 294 352 422 473 625 765 918
Flange O.D. 124 155.4 165.1 190.5 209.5 254 279.4 317.5 381 444.5 520.4
Flange PCD 88.9 114.3 127 149.3 168.1 200.1 234.9 269.7 330.2 387.3 450.8
R.F. Dia. 50.8 73 92.1 104.7 127 157.2 185.7 215.9 269.9 323.8 381.0
No. of Hole 04 04 08 08 08 08 08 12 12 16 16
Hole Dia. 19 22.2 19 22.2 22.2 22.2 22.2 22.2 25.4 28.6 31.8

3 Way Ball Valve Operation :

Dharmi Engineers Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size. Dharmi Engineers also offering Ball Valves with either Pneumatic or Electrical actuator operated for automation. We also offer Pneumatic Actuator Operated 3 Way Ball Valve, Remote operated Three Way Ball Valve, Auto 3 Way Ball Valve, Pneumatic Actuated Three Way Ball Valve, 3 Way Diverter Ball Valve, Three Way Fire Safe Design Auto Ball Valve, Gear Actuator Operated 3 Way Ball Valve, Pneumatic 3 Way L Port Ball Valve, Pneumatic Actuated 3 Way T Port Ball Valve. We recommend Gear Operated 3 Way Ball for above 4" x 150# & 3" x 300# Size.

Accessories for 3 Way Ball Valves:

Three-Way-Ball-Valve-Pneumatic-Actuator

    Pneumatic Actuators:

Type - Double / Single Acting (Spring Return) Quarter Turn
Body - Extruded Aluminium, Hard Anodized (Stainless Steel Body also available on Request
Pinion - Steel
Piston wiht Rack - Aluminium
End Cover - Aluminium
Piston Seal - NBR
Piston Bearing - Polyacetal
Spring - Spring Steel Grade 3 (For Spring Return Actuator)
Strok Adjustment Screw - S.S. 304
Air Connection - 1/4" BSP Female (1/2" for above 2000Nm)
Torque Capacity Range - 5Nm To 3000 Nm
Suitalbe for up to 8 Bar Air Pressure
ISO 5211 Mounting Pad

Three-Way-Ball-Valve-Gear-Box-Worm-Gear-Type

    Gear Box:
Type - Worm Gear, Quarter Turn, + 10 Deg. Adustable
Body Housing - ASTM A 126 GR. B (Epoxy Coated)
Cover - ASTM A 126 GR. B (Epoxy Coated)
Worm Wheel - S.G. Iron
Worm - Alloy Steel
Input Shaft - Alloy Steel
Bearing Bush - Brass
Greese Nipple - Steel
Fastners - ASTM A 193 GR. B7 / A 194 GR. 2H
Grease - Lithon 2
Hand Wheel - C.S. Fabricated (Epoxy Coated)
Torque Capacity Range - 50Nm To 25000 Nm
Three-Way-Ball-Valve-Manual-Override-Operated     Manual Override Gear Box:
Application - In Case of Failure of Air/Electric to Operate Valve
Type - Worm Gear, Quarter Turn, + 10 Deg. Adustable
Body Housing - ASTM A 126 GR. B / Aluminium / Ductile Iron
Cover - ASTM A 126 GR. B / Aluminium / Ductile Iron
Worm Wheel - S.G. Iron
Worm - Alloy Steel
Input Shaft - Alloy Steel
Bearing Bush - Brass
Greese Nipple - Steel
Fastners - ASTM A 193 GR. B7 / A 194 GR. 2H
Grease - Lithon 2
Hand Wheel - C.S. Fabricated (Epoxy Coated)
Torque Capacity Range - 50Nm To 5000 Nm

3-Way-Ball-Valve-Air-Filter-Regulator

    AFR - Air Filter Regulator:
Body Material - Aluminium Die Cast
Connection Size - 1/4"
Filter Element Size - 5, 25, 50 Micron
Filter Element Material - Polycarbonate
Range - 0 to 17.5 Kg./Cm2
Maximum Operating Temperature - 80 Deg. C.
Drain - Manual
Mounting - Back Side
Mounting - Back Side
Outlet - Adjustable Type

3-Way-Ball-Valve-Remote-Operated-Limit-Switch

    Limit Switches (Weather / Explosion Proof):
Housing - Aluminium Die Cast Powder Coated
Cable Entry - 1/2" / 3/4" NPT
Fasteners - Strainlesss Steel
Temperature - (-) 20 Deg. C, to (+) 80 Deg. C.
Swithches - Micro OR Cylindrical Inductive Proximity Sensor
Shatterproof Polycarbonate Dom for On/Off Indication
Bracket - C.S. Powder Coated (S.S. available on request)

3-Way-Ball-Valve-Solenoid-Operated-India

    Namur Solenoid Valve:
Type - 5 x 2 Way (for Double Acting)/3 x 2 (for Single Acting)
Body - Aluminium Anodized (Brass/S.S. on request)
End Connection Size - 1/4" BSP
Air Supply - Up to 8 Kg./Cm2
Coil Voltage - 220 V. / 110 V. / 24 V. AC / DC
Enclosure - Weather Proof / Flame Proof / Explosion Proof
Seal - NBR
Life - 60 Milion Cycle
Manual Override Provided
Temperature - (-) 20 Deg. C, to (+) 70 Deg. C.
Large Exchause for Fast operation of Valve
Others: Silencer, Air Lock Relay, Tubing & Fittings (PU/Brass/Copper/SS 304-316)

Wide Range of 3 Way Ball Valve Body Seat, Seal & Packing :

Dharmi Engineers Ball Valves are also available with different type of Seat, Seal & Packing material such as P.T.F.E. (Virgin) / Glass Filled P.T.F.E. / Carbon Filled P.T.F.E. / Graphite (Grafoil) / PEEK to suit special requirement of client. As our standard practice we do provide PTFE V Packing ring set.

3 Way Ball Valve Salient Features :

High Performance Ball Valve

Longer Smooth Life

Positive Shut off

Low Operating Torque

Quick in Action

No Lubrication

Compact Design

Low Pressure Drop

Simplicity

3 Way Ball Valve Design & Testing International Standard :

Valve Design

:

BS EN ISO 17292 (BS 5351)  / ANSI B 16.34 / API 6D

Pressure Testing

:

BS EN ISO 12266 - II (BS 6755 - II)  / API 598 / API 6D

Face To Face

:

Mfg. Standard

Flange Drilling

:

ANSI B 16.5 / BS 10 Table / DIN / IS 6392

Butt Weld End

:

ANSI B 16.25

Socket Weld End

:

ANSI B 16.11

Screwed End

:

ANSI B 1.20.1(BSP/NPT)

3 Way Ball Valve Material of Construction :

Body / End Connector Piece

Stem

Cast Iron to ASTM A 126 Class B
IS 210 GR. FG 200 / 220 / 260

Ductile Iron to ASTM A 536 Grade 65-45-12

Cast Carbon Steel to ASTM A 216 GR. WCB

Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M

Hast Alloy B / C

ASTM A 351 GR. CN 7M (Alloy 20)

AISI 410 (S.S. 410 13% Cr. Steel)

AISI 304 (S.S. 304)

AISI 316 (S.S. 316)

AISI 304L (S.S. 304L)

AISI 316L (S.S. 316L)

Hast Alloy B/C

Alloy 20

Ball

Ball Seat / Gland Seal / Stem Seal

Stainless Steel to ASTM A 351 GR. CF 8 / 8M / 3 / 3M

Hast Alloy B / C

ASTM A 351 GR. CN 7M (Alloy 20)

P.T.F.E. Virgin

P.T.F.E. Glass Filled

P.T.F.E. Carbon Filled

Grafoil

Wide Range of Industrial Ball Valve

Cast Iron Ball Valve

Cast Carbon Steel Ball Valve

Cast Stainless Steel Ball Valve

Forged Steel Ball Valve

Single Piece Design Ball Valve

Two Piece Design Ball Valve

Three Piece Design Ball Valve

High Pressure Ball Valve

Two Way Ball Valve

Three Way Ball Valve

Four Way Ball Valve

High Performance Ball Valve

Jacketed Ball Valve

Flush Bottom Ball Valve

Gear operated Ball Valve

Pneumatic Ball Valve

I.C. Ball Valve (Investment Casting)

Multiport Ball Valve

Mixing & Diverting Type Ball Valve

Fire Safe Design Ball Valve

Zero Leakage Ball Valve

   Specialised Range of 3 Way Ball Valves / Three Way Ball Valve

    3 Way Ball Valve        Three Way Ball Valve
    3 Way Ball Valve Manufacturer        Three Way Ball Valve Manufacturer
       3 Way Ball Valve Exporter        Three Way Ball Valve Exporter
       3 Way Ball Valve India        Three Way Ball Valve India
       3 Way Jacketed Ball Valve        Three Way Jacketed Ball Valve
       3 Way Fire Safe Design Ball Valve        Three Way Fire Safe Design Ball Valve
       3 Way Pneumatic Operated Ball Valve        Three Way Pneumatic Operated Ball Valve
       3 Way Actuated Ball Valve        Three Way Actuated Ball Valve
       3 Way Ball Valve Stockiet        Three Way Ball Valve Stockiet
       3 Way Ball Valve Supplier        Three Way Ball Valve Supplier
       3 Way L Port Ball Valve        Three Way L Port Ball Valve
       3 Way T Port Ball Valve        Three Way T Port Ball Valve
       3 Way Diverter Ball Valve        Three Way Diverter Ball Valve
       3 Way Flanged Ball Valve        Three Way Flanged Ball Valve
       3 Way Scrwed Ball Valve        Three Way Scrwed Ball Valve


Recent Execute 3 Way Ball Valve Purchase Order

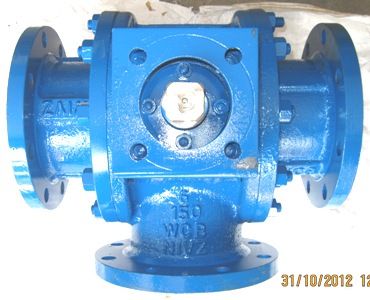

Date: 31/10/2012 - 3 Way L Port Ball Valve supply for Thermal Power Plant, for Lube Oil Diverting Line. Three Way Ball Valve Specification - Body - ASTM A 216 GR. WCB, Trims - S.S. 304, Operation - Gear Operated. 3 Way Ball Valve is going to installed in Thermal Power Plant of KSK.

CS-3Way-Ball-Valve-Gear-Operated-Flanged-End-India

CS-Three-Way-Ball-Valve-Gear-Operated-Flanged-End-India

Date: 05/10/2012 - S.S. 304 Material Three Way L Port Ball Valve Hand Lever Operated. Pressure Rating - 150#, Flange Drilling - As Per ANSI B 16.5, Class 150. Body/End Piece/Ball - ASTM A 351 GR. CF8 (Stainless Steel 304). Seat/Seat/Gland Packing - PTFE.

SS304-SS316-304L-316L-Three-Way-Ball-Valve-Flanged-End-Manufacturers

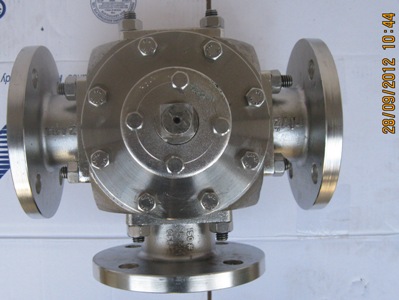

Date: 28/09/2012 - Investment Casting Stainless Steel 304 Material 3 Way T Port Ball Valve Hand Lever Operated. Pressure Rating - 150#, Flange Drilling - As Per ANSI B 16.5, Class 150. Body/End Piece/Ball - ASTM A 351 GR. CF8 (Stainless Steel 304). Seat/Seat/Gland Packing - PTFE.
SS304-SS304L-3-Way-T-Port-Ball-Valve-Exporters-India

SS304-SS304L-Three-Way-T-Port-Ball-Valve-Exporters-India

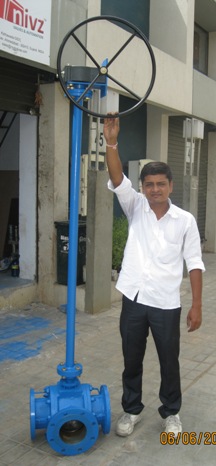

Date: 06/06/2012 - Three Way Ball Valve supply for Thermal Power Plant, Lube Oil Cooler/Heat Exchanger Application. 3 Way Ball Valve Specification - Body - ASTM A 216 GR. WCB, Trims - S.S. 316, Operation - Gear Operated. 3 Way Ball Valve is going to installed in Thermal Power Plant which earlier supplied by M/s. ThyssenKrupp.
Power-Plant-Lube-Oil-Cooler-3-Way-Valve-Manufacturer-Exporters-India

Power-Plant-Lube-Oil-Cooler-Three-Way-Valve-Manufacturer-Exporters-India

Industrial Valves Manufacturer and Expoorter India









Home

About Us

Products

Quality

Download

Clients

Contact Us

2008 Copyright dharmiengineers.com, All Rights Reserved.
