Forged Steel Lift Check Valve "Non Return Valve"

Suitable For Horizontal Line Only
Socket Weld / Butt Weld / Screwed End Connection
Reduced Bore / Standard Bore
Pressure Rating up to 1500#
Size Range up to 2 (DN 50)
.

Forged Steel Lift Check Valve
Non Return Valve
Rating - 800#
Threaded/Welded End
Forged Steel Lift Check Valve BS 5352 API 602 Drawing Dimension Catalogue Download

Dharmi Engineers Forged Steel Check Valves are manufactured as per BS-5352 Standard and Tested to BS-5146 Standard. Dharmi Engineers designed piston type lift check valve incorporating self-cushioning effect.

Body Guided piston assuring accurate return to seat ring to achieve leak tightness.

Dharmi Engineers Forged Steel Lift Check valves are available under any Third party inspection.

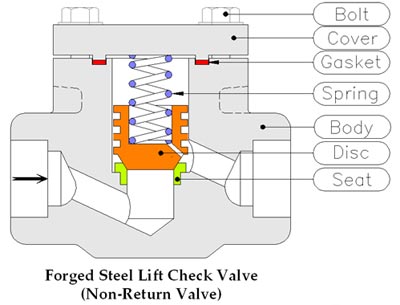

Forged Steel Lift Check Non Return Valve Drawing Dimension Diagram

Forged Steel Check Valve Manufacturer Exporter in India

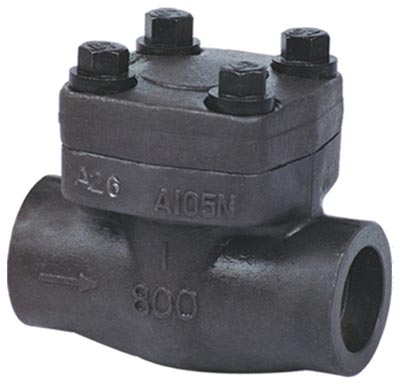

Forged Carbon Steel Check Valve
Socket Weld End Connection
Size: (DN 20)

Design & Testing International Standard :

Valve Design

:

BS 5352

Pressure Testing

:

BS 5146

Face To Face

:

ANSI B 16.10

Butt Weld End (Welded Neck)

:

ANSI B 16.25

Socket Weld End

:

ANSI B 16.11

Screwed End

:

ANSI B 1.20.1(BSP/NPT)

Salient Features :

A Compact But Extremely Sturdy Design for High Pressure & Temperature Service

Bolted Cover Design

Piston Type Body Guide Disc

Assure Perfect Alignment of Disc & Seat Ring

Material of Construction :

Body & Cover

Disc & Seat

ASTM A 105 (Forged Carbon Steel)

ASTM A 182 F 304 / 304L (Forged Stainless Steel 304 / 304L)

ASTM A 182 F 316 / 316L (Forged Stainless Steel 316 / 316L)

ASTM A 182 F 11 / F 22 (Forged Alloy Steel)

AISI 410 (S.S. 410 13% Cr. Steel)

AISI 304 (S.S. 304)

AISI 316 (S.S. 316)

AISI 304L (S.S. 304L)

AISI 316L (S.S. 316L)

Stellited Hard Face on Seat & Disc

Options :

Other Material of Construction

Flanged End, Flange Welded to Body, Rating 150# / 300# / 600#

Butt Weld (Welded Neck) / Socket Weld / Screwed (BSP/NPT) Connection

Seat & Disc Stellited Hard Face

Special Trims on Request

Applications :

Power Plants & Process Industries

Fertilizers Plants

Sugar Industries & Distillery Plants

Water, Steam, Gas, Oil & other Non-aggressive media

Other application on request

Please specify below details at the time of enquiries/orders:

Types of Valve

Pressure Rating Class

Valve Size

Type of End Connection

Material of Construction

Trims Materials

Flow Medium (Service)

Design Pressure

Operating (Working) Pressure

Design Temperature

Operating (Working) Temperature

Wide Range of Industrial Check Valve

Cast Iron Check Valve (Non Return Valve)

Cast Carbon Steel Check Valve (Non Return Valve)

Cast Stainless Steel Check Valve (Non Return Valve)

Forged Steel Check Valve (Non Return Valve)

Alloy Steel Check Valve (Non Return Valve)

Alloy 20 Check Valve (Non Return Valve)

High Pressure Check Valve (Non Return Valve)

Swing Check Valve (Non Return Valve)

Wafer Type Check Valve (Non Return Valve)

Disc Check Valve (Non Return Valve)

Lift Type Check Valve (Non Return Valve)

Single Disc Check Valve (Non Return Valve)

Rubber lined Check Valve (Non Return Valve)

P.T.F.E. lined Check Valve (Non Return Valve)

Non-Slam Type Check Valve (Non Return Valve)

Zero Leakage Check Valve (Non Return Valve)
