High Pressure Ball Valve

High Pressure Ball Valve Manufacturers and Exporters

High Pressure Ball Valve for up to 10000 psig pressure

Low Torque High Pressure Ball Valve Manufacturer

Pneumatic Operated High Pressure Ball Valve

End Connection – Screwed End (BSP/NPT)
Size Range – ¼” (6mm) to 3” (80mm)

High Pressure Ball Valves – Series: HPXV1

Dharmi Engineers HPXV1 series High Pressure Ball Valve Valves offer 10000 psi rated valves in sizes up to 2" and are suitable for steam, hydraulics, oil and gas production and all high pressure fluid applications. Dharmi Engineers is specialized in Design, Manufacture and Supply of High Quality Ball Valves, and other Industrial Valves, Sight Glass and Strainer.

A ball valve is a valve with a spherical disc, the part of the valve which controls the flow through it. The sphere has a hole, or port, through the middle so that when the port is in line with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to the ends of the valve, and flow is blocked. The handle or lever will be inline with the port position letting you "see" the valve's position.

Ball valves are durable and usually work to achieve perfect shutoff even after years of disuse. They are therefore an excellent choice for shutoff applications Ball valves are used extensively in industry because they are very versatile, supporting pressures up to 700 bars and temperatures up to 220°C.

We conduct individual pressure testing for each valve to ensure safety. We also offer block housing in carbon steel phosphate plated and other metallic finish on request of the client. These valves are manufactured in carbon steel and stainless steel material.

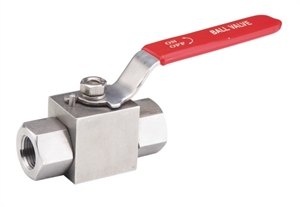

High Pressure Ball Valve



Specification :

  • Size: 1/8" - 3"
  • Applications: Power Plant, Chemical, Petrochemical, Oil and Gas, Refinery, Sugar Mill, Paper Mill, Pharmaceutical, Food & Beverage.
  • Services: Water, Gas, Steam, Chemicals, Solvents, Thermal Fluid.
  • Pressure: Up to 10000 psi.
  • Temperature: Up to 220 Deg.C.
  • Material: C.S, S.S 304, S.S 316, S.S 304L, S.S 316L
  • End Connection: Screwed End  ( BSP / NPT)
  • Operation: Hand operated or Pneumatic Actuated.

Material of Construction :

  • ASTM A 105 (Forged C.S.)
  • ASTM A 182 F 304 (Forged S.S. 304)
  • ASTM A 182 F 316 (Forged S.S. 316)
  • ASTM A 182 F 304L (Forged S.S. 304L)
  • ASTM A 182 F 316L (Forged S.S. 316L)
  • AISI 304 / AISI 316
  • AISI 304L / AISI 316L
